Osciloscop Digital portabil DSO150 cu sonde ecran colir

160 RON

Descriere

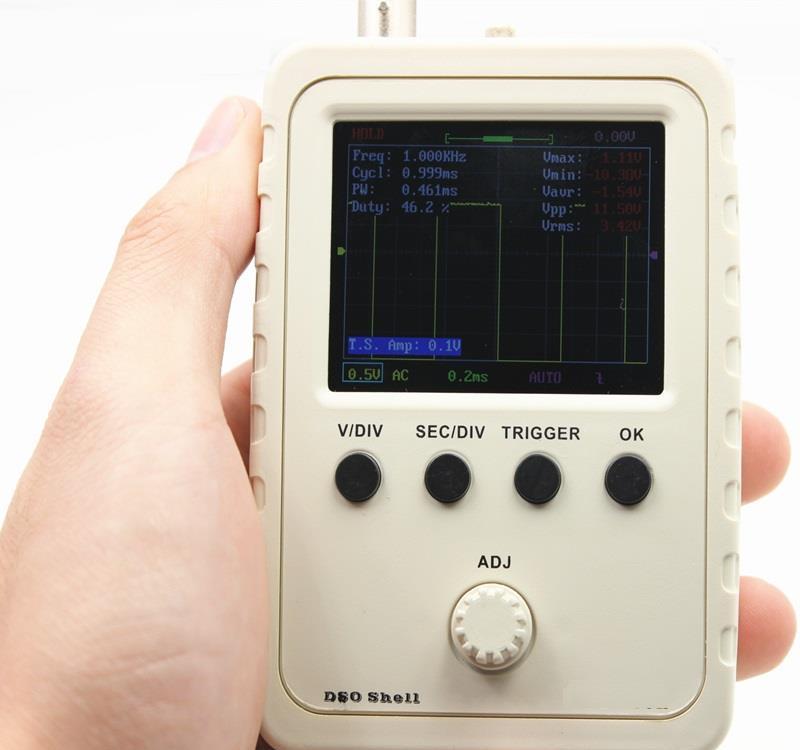

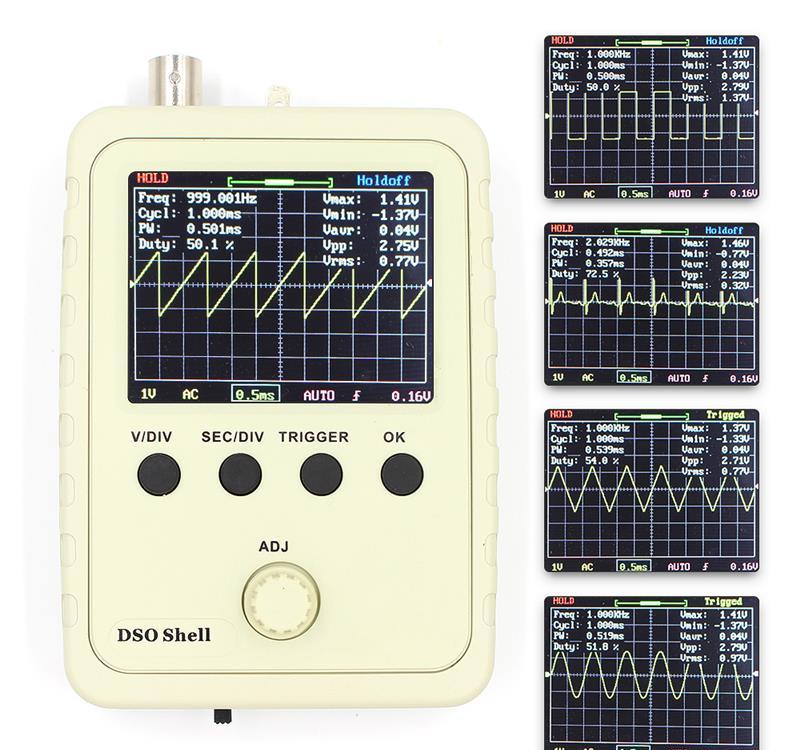

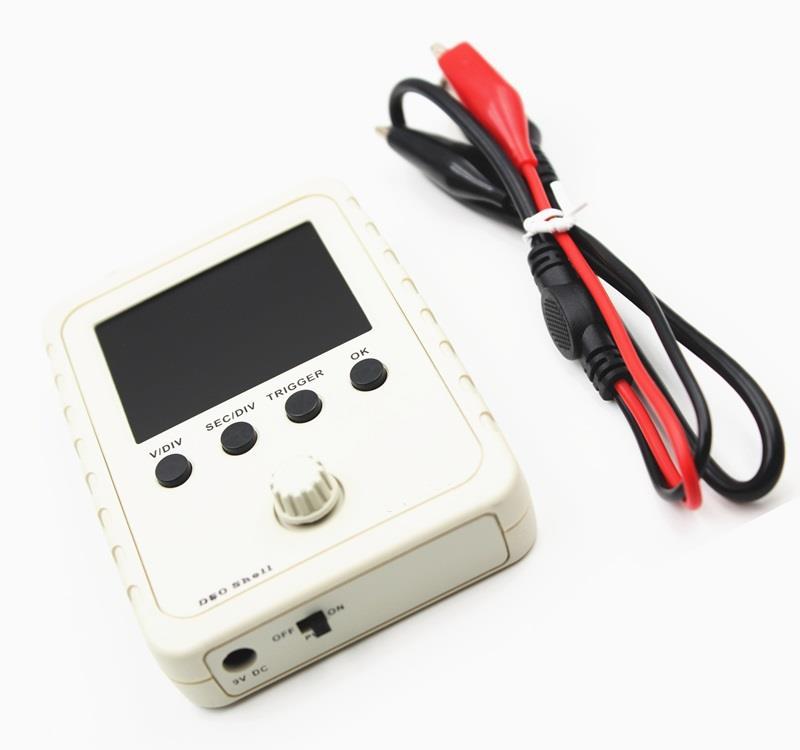

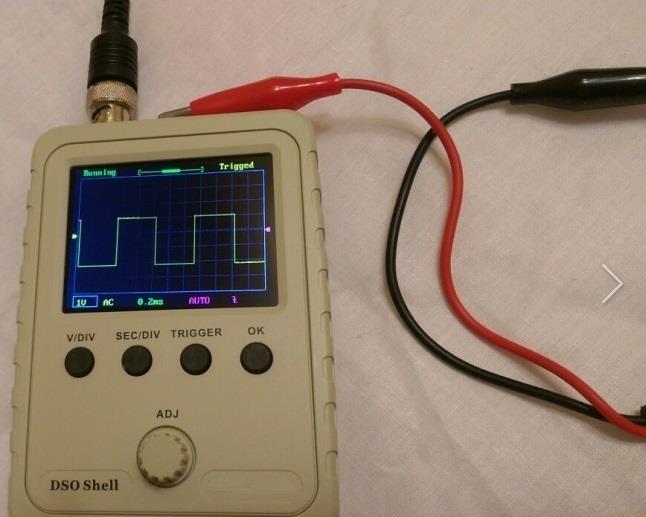

          Osciloscop Digital portabil DSO150 bazat pe processor ARM Cortex-M3 cu ecran color de 2.4-inch TFTpret 160ron cu sonde simple crocodilpret 185ron pt varianta cu sonda varf-carlig x1 /  10pret 165 ron include si adaptor baterie 9vIt's easy and reliable for circuit operation. It can display waveform parameters, such as frequency, period, pulse width, duty ratio, MAX. MIN.,AVG.,Peak-Peak,virtual values.poate fi folosit pt sonda lambda la masini motociclete etc.. in electronica vizualizare semnale PWM Features:Adopt ARM Cortex-M3 processor (STM32F103C8), and include a 2.4-inch color TFT display screen.Used for secondary development on the basis of this kit, for example, it can be changed to Millivoltmeter, data loggers.Come with instructions, easy to install and operate. With Auto, Normal, Single trigger modes, easy to capture the moment waveform.Available rising or falling edge trigger.Observable previous waveform before trigger(negative delay).Can freeze waveform display at any time(HOLD function).With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX. MIN. AVG. Peak-Peak virtual values.Waveform storage function: will not lose the waveform after power off.Short-circuit and open-circuit detection: can help the user find out the soldering error.TFT controller recognition function.Specifications:Maximum Real-time Sampling Rate: 1MSa sAnalog Bandwidth: 0-200KHzSensitivity Range: 5mV div-20mV divMaximum Input Voltage: 50Vpk (1X probe)Input Impedance: 1M ohms ,20pFAccuracy: 12 BitsRecord Length: 1024 pointsCoupling Modes: DC , AC , GNDTime Base Range: 500s per Div - 10usDiv Trigger Modes: Auto, Normal, and SingleTrigger Position: Center of BufferSupply Voltage: DC 9V(8-10V)Current Consumption: 120mA  9VMain Board Size: 94 * 65mm x 3.7 * 2.56inAnalog Board Size: 65 * 47mm x 2.56 * 1.85inScreen Size: 52 * 40mm x 2 * 1.57inPackage Size: 14.5 * 10 * 3.7cm x 5. inPackage Weight: 179g
