surse DC stepdown adjustabila LM2596 sau stepup

19 RON

Descriere

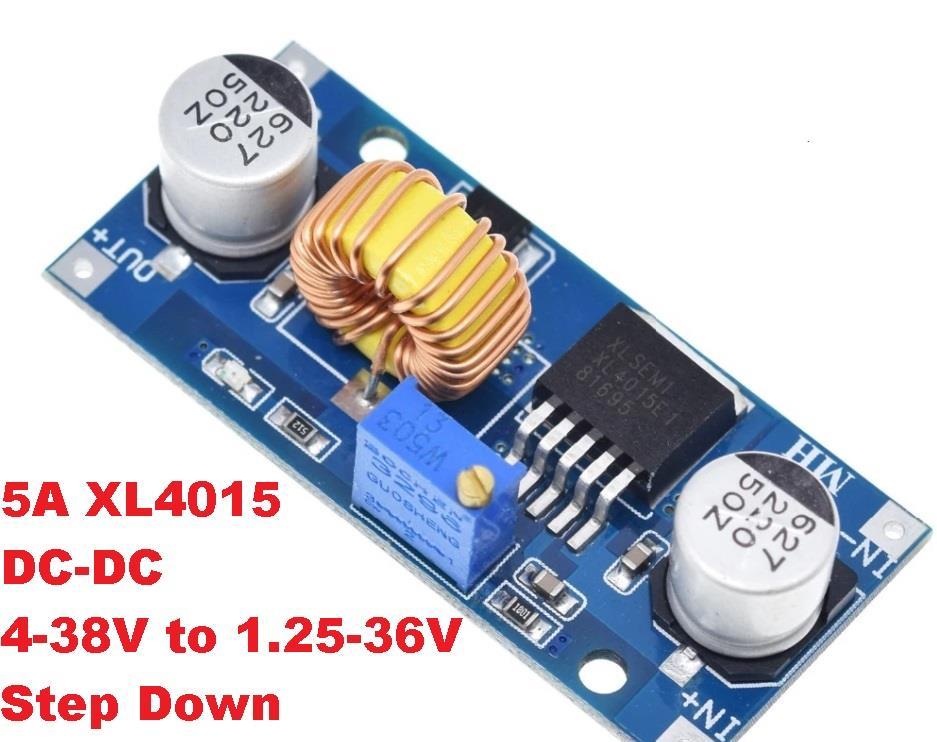

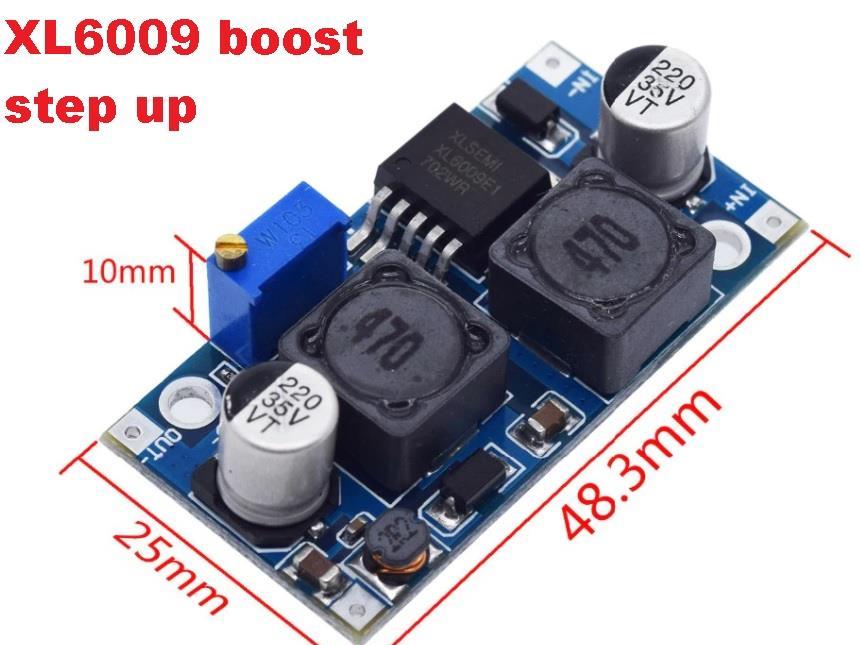

          1) 5A XL4015 DC-DC 4-38V to 1.25-36V 24V 12V 9V 5V Step Down Adjustable Power Supply Module LED Lithium Charger With Heat Sink21ron2) stepdown xl6009: 19ronIN-IN + input Positive Input Negative!Positive output OUT + OUT-output negativeTest comparison sample reference:Input 3V Output 12V 0.4A 4.8WInput 5V Output 12V 0.8A 9.6WInput 7.4V Output 12V 1.5A 18WInput 12V Output 15V 2A 30WInput 12V Output 16V 2A 32WInput 12V Output 18V 1.6A 28.8WInput 12V Output 19V 1.5A 28.5WInput 12V Output 24V 1 A 24WVin * Iin * Efficiency = Vout * IoutVin: Input VoltageIin: input currentVout: Output VoltageIout: output current DSN6009 4A is a high-performance step-up switching current (BOOST) module. The module uses the second generation of high-frequency switching technology XL6009E1 core chip performance than the first generation technology LM2577. XL6009 boost module at a lower cost, superior performance, LM2577 module is about to be eliminated.Wide input voltage 3V32V, optimum operating voltage range is 532V;Wide Output voltage 5V35V;Built-4A efficient MOSFET switches enable efficiency up to 94%; (LM2577 current is 3A) high switching frequency 400KHz, can use a small-capacity filter capacitors that can achieve very good results, the ripple smaller and smaller. (LM2577 frequency only 50KHz)Technical parameters:Model SpecificationDSN6009 boost moduleModule PropertiesNon-isolated boost (BOOST)RectificationNon-Synchronous RectificationInput Range3V32VOutput Range5V35VInput Current4A (max), no-load 18mA (5V input, 8V output, no-load is less than 18mA. Higher the voltage, the greater the load current.)Conversion efficiency<94% (greater the pressure, the lower the efficiency)Switching frequency400KHzOutput Ripple50mV (the higher the voltage, the greater the current, the greater the ripple)Load Regulation  0.5%Voltage Regulation  0.5%Operating Temperature-40  +85  Dimensions43mm * 21mm * 14mm (L * W * H)3) LM2596 cu display voltmetru:  20ronRectification mode:Non-synchronous rectifier      Input voltage:3V-40V      Output voltage:1.3V-35V      Output current:Rated current is 2A,maximum 3A(Additional heatsink is required)      Conversion efficiency:92%( highest )      Switching frequency:65KHz      Output ripple:30mV( maximum )      Load regulation: 0.5%      Voltage regulation:  2.5%      Work temperature:-Minus 40 degrees - 85 degrees      dimension:43mm*21mm*14mm(L*W*G)      NOTE:This can't be used to step up Voltage
